[free]Gate 2022 CE solved paper with explantion Q21 to Q30 pdf

Below the Gate 2022 Civil Engineering solved question paper(forenoon session ) which were held on 12-02-2022. The total number of questions are 65, 10 from aptitude and 55 from Civil Engineering. Question paper is cover in 7 pages and each page have 10 questions. Question on this page from 21 to 30.

Quick links :

10 questions of Aptitude 55 questions of Civil Engineering

Do you know ? You can check your knowledge by clicking any option with the help of in build practice mode without checking detail solution, while reading gate CE paper . With this know the level of your preparation and make a study plan for it.

Let’s start

Check Sample of detailed explanation in Question 01 and Question 05, So register today without any fee, unlock many feature and content for free. Sign up

Q 21.

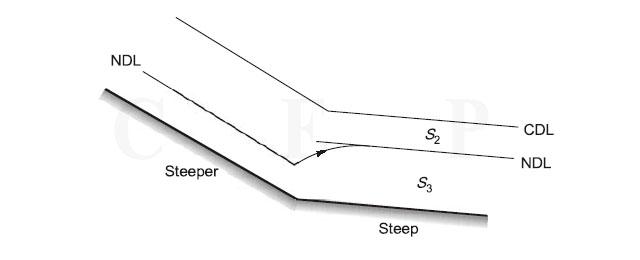

A rectangular channel with Gradually Varied Flow (GVF ) has a changing bed slope. If the change is from a steeper slope to a sleep slope, the resulting GVF profile is

S_3

S_1

S_2

either

S_1 \; \textrm{or} \; S_2

, depending on the magnitude of the slopes

Previously Asked in : Gate CE-forenoon 2022 ||

Detailed Explanation

Sample , So register today without any fee, unlock many feature and content for free. Sign up

As per given data,

Flow is changed from steeper to sleep. So the normal depth of flow will increase in a steep slope, as the slope is decreased. CDL will remain the same for both the slope.

Sleeper slope $\to$ More bed slope than steep

Correct option is: S₃

Q 22.

The total hardness in raw water is 500 milligram per liter as CaCo₃ . The total hardness of this raw water, expressed in milligram equivalent per liter, is

(Consider the atomic weights of Ca, C, and O as 40 g/mol, 12 g/mol, and 16 g/mol. respectively.)

100

Previously Asked in : Gate CE-forenoon season 2022 ||

Detailed Explanation

This content has been restricted to logged-in users only. Please login to view this content.

Q 23.

An aerial photograph is taken from a flight at a height of 3.5 km above mean sea level, using a camera of focal length 152 mm. If the average ground elevation is 460 m above mean sea level, then the scale of the photograph is

1 : 20000

1: 20

1 : 2800

1 : 100000

Previously Asked in : Gate CE-forenoon season 2022 ||

Detailed Explanation

This content has been restricted to logged-in users only. Please login to view this content.

Q 24.

A Line between stations P and Q laid on a slope of 1 in 5 was measured as 350 m using a 50 m tape. The tape is known to be short by 0.1 m.

The corrected horizontal length (in m) of the line PQ will be

342.52

349.30

356.20

350.70

Previously Asked in : Gate CE-forenoon season 2022 ||

Detailed Explanation

This content has been restricted to logged-in users only. Please login to view this content.

Q 25.

The matrix M is defined as

M = $\begin {bmatrix} 1 & 3 \\ 4 & 2 \end {bmatrix}$

and has eigenvalues 5 and -2 . The matrix Q is formed as

Q = M³ – 4 M² – 2 M

which of the following is/are the eigenvalue (s) of matrix Q ?

-20

-30

Previously Asked in : Gate CE-forenoon season 2022 ||

Detailed Explanation

Sample , So register today without any fee, unlock many feature and content for free. Sign up

Given; Eigen values of M are 5, -2

so eigen value of Q = $M^3 - 4 M^2 - 2M$ are

using 5 = $5^3 - 4 \times 5^2 - 2 \times 5 = 15$

using -2= $(-2)^3 -4 \times (-2)^2 -2 \times -2 = -20$

So the both 15 and -20 are Correct options.

Learn more : Previous year Gate papers of Civil Engineering with detailed solution

Learn more : GATE 2022 All branches Aptitude Questions with detailed Solution

Q 26.

For wastewater coming from a wood pulping industry. Chemical Oxygen Demand (COD) and 5 -day Biochemical Oxygen Demand (BOD₅) were determined.

For this wastewater, which of the following statement(s) is/are correct ?

COD > BOD5

COD ≠ BOD5

COD < BOD5

COD = BOD5

Previously Asked in : Gate CE-forenoon season 2022 ||

Detailed Explanation

This content has been restricted to logged-in users only. Please login to view this content.

Q 27.

Which of the following process (es) can be used for conversion of salt water into fresh water ?

Electrodialysis

Reverse osmosis

Ultrafiltration

Microfiltration

Previously Asked in : Gate CE-forenoon season 2022 ||

Detailed Explanation

This content has been restricted to logged-in users only. Please login to view this content.

Q 28.

A horizontal curve is to be designed in a region with limited space. Which of the following measure (s) can be used to decrease the radius of curvature ?

Decrease the design speed

Increase the super elevation

Increase the design speed

Restrict vehicles with higher weight from using the facility

Previously Asked in : Gate CE-forenoon season 2022 ||

Detailed Explanation

This content has been restricted to logged-in users only. Please login to view this content.

Learn more : Gate syllabus for Civil Engineering

Q 29.

Consider the following recursive iteration scheme for different values of variable P with the initial guess $x_1 = 1$

$X_{n +1} = \dfrac {1}{2} \left ( x_n + \dfrac {P}{x_n} \right), \qquad n = 1,2,3,4,5$

For $P = 2, x_5$ is obtained to be 1.414, rounded-off to three decimal places. For $P = 3 , x_5$ is obtained to be 1.732 , rounded-off to three decimal places.

If $P = 10$ , the numerical value of x₅ is ________. (round off to three decimal places.

Previously Asked in : Gate CE-forenoon season 2022 ||

Detailed Explanation

This content has been restricted to logged-in users only. Please login to view this content.

Q 30.

The Fourier cosine series of a function is given by :

$f(x) = \sum_{n=0}^{\infty} f_n\, cos nx$

For $f(x) = cos^4 x$ , the numerical value of $( f_4 + f _5 )$ is ______. (round off to three decimal places )

Previously Asked in : Gate CE-forenoon season 2022 ||

Detailed Explanation

This content has been restricted to logged-in users only. Please login to view this content.
